GPU Water Block

The Copper GPU water blocks are water cooling equivalent of a heatsink, for improving cooling performance, ensuring stable and reliable cooling performance even High-end GPUs. We offer for many models for custom requirements.

Custom GPU Water Block

We offer a variety of GPU Water Blocks Manufacturing Services that fit nearly every current Graphics Card. With the most competitive prices, 10+ years in thermal management fabrications.

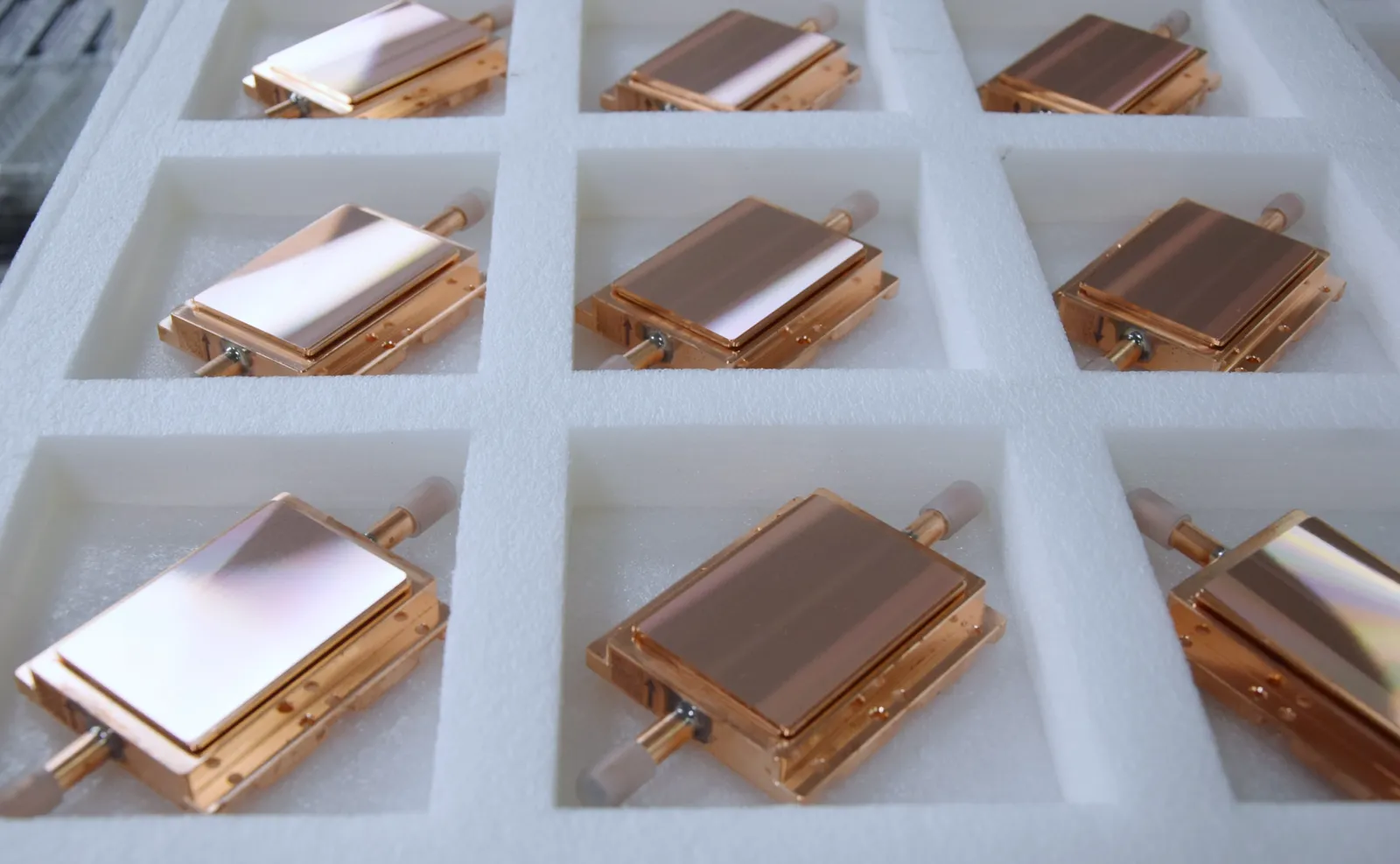

DSC_0051

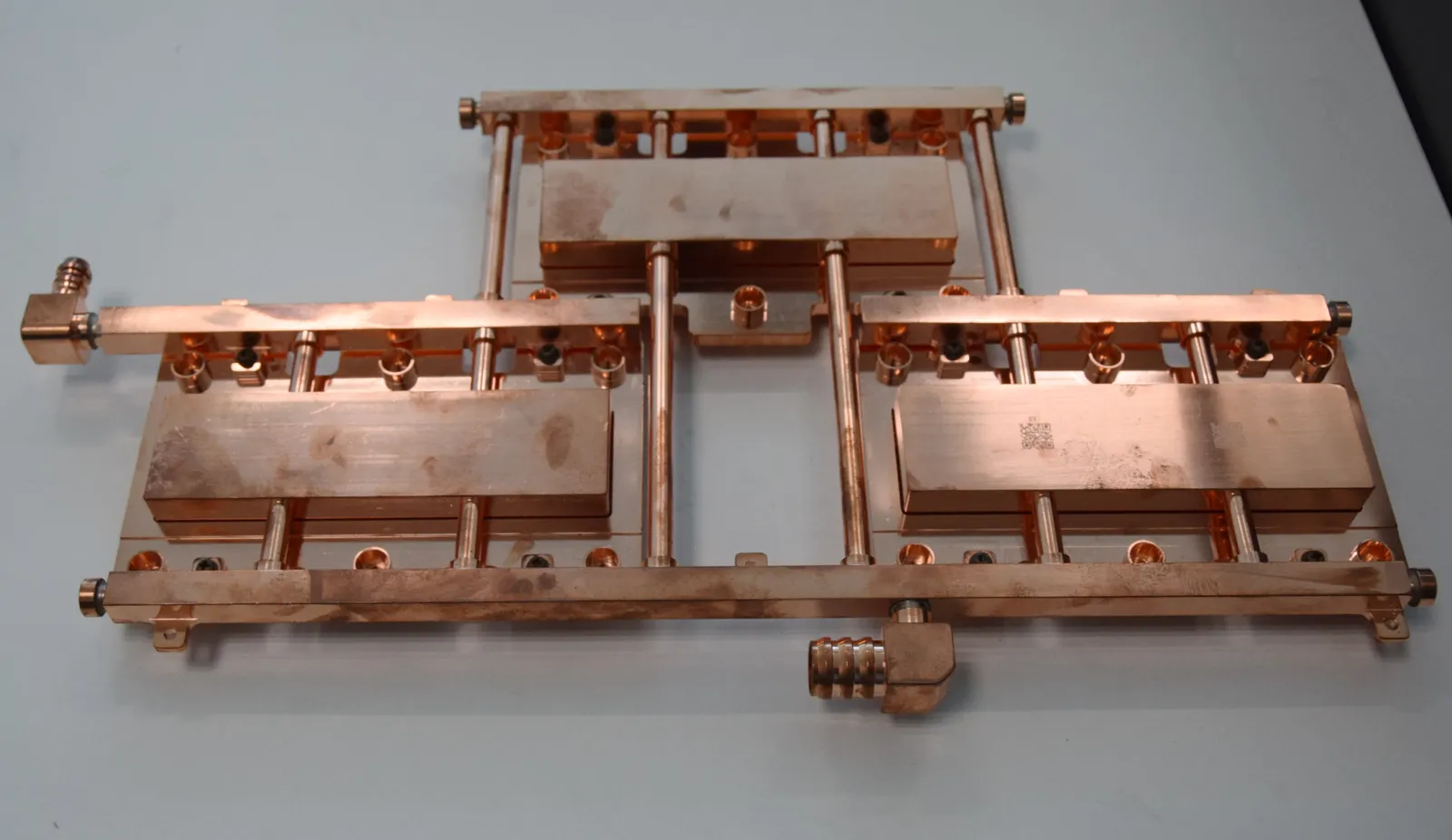

DSC_0117

Technical Specifications

Parameter Details
Making process CNC machining + epoxy bonding
Types of Welding Processes TLP/FSW/Vacuum Brazing/Laser Welding
Size Custom
Material Aluminum (optiona), Copper (standard)
Operating Temperature -40°C to 100°C (typical range; exact values depend on design)
Thermal Resistance 0.05°C/W (typical; exact values depend on design)
Flow Rate 1-5 L/min (typical; exact values depend on design)
Pressure Drop <0.1 bar (typical; exact values depend on design)
Certifications ISO9001:2015 certified

Note: Specific thermal performance metrics may vary based on custom design. Please contact us for detailed specifications.

Properties of Machined Material

We offer multiple Materials for your choose, then manufacture the Best liquid cold plates to meet your application & working environment.

You can choose from:
Copper LCP - with excellent heat dissipation

Aluminum LCP - with excellent weight saving

Stainless steel cold Plate - with strong corrosion resistance
If you have any questions about the liquid cold plates & liquid cooling devices, please feel free to contact us for more information.

Material Thermal Conductivity (W/m·K) Specific Gravity Corrosion Resistance
Copper 398 8.82 Strong
Aluminum 236 2.68 Lightweight
Stainless 17 7.93 Comprehensive

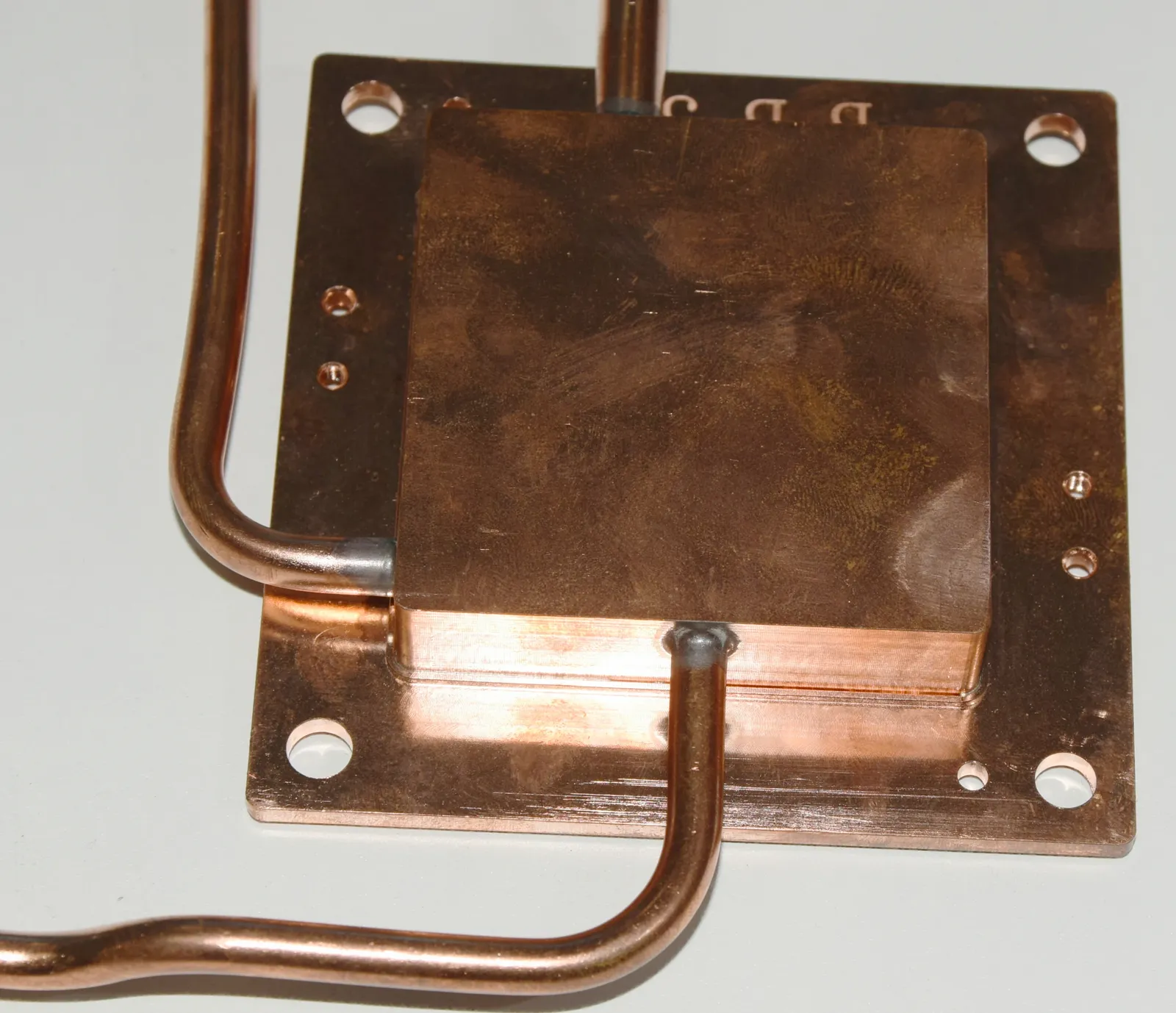

DSC_0109

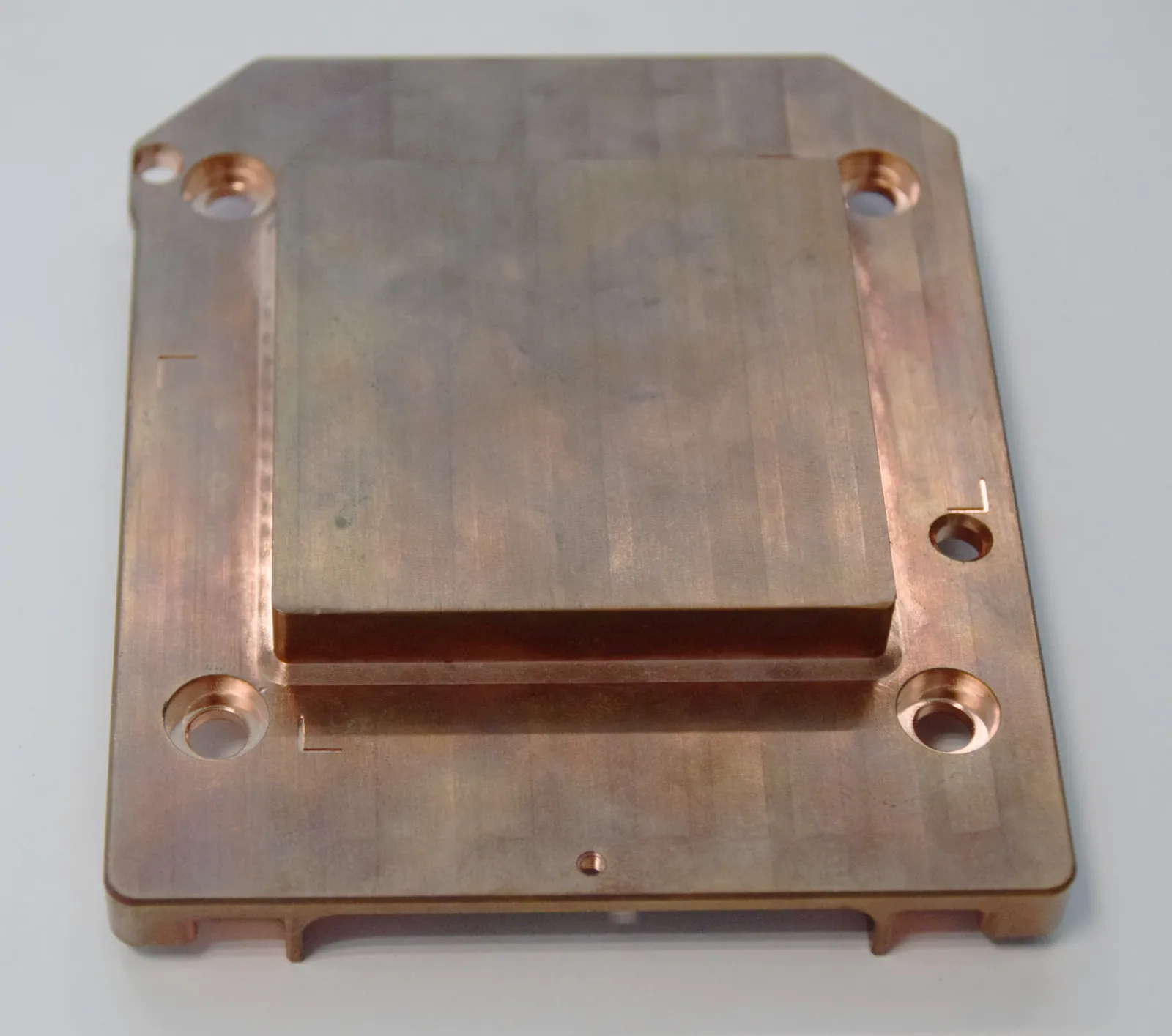

DSC_0094

Materials determine coolants

The best combination of the plate's material and coolant we suggest as follow:

Copper:

  • Pure water (managed by ion exchange unit)
  • Industrial water, tap water (neutral, requires management of pH)
  • Antifreeze (with rust inhibitor): Ethylene glycol + pure water/Propylene glycol + pure water

Aluminum :

  • Pure water (managed by ion exchange unit)
  • Antifreeze (with rust inhibitor):Ethylene glycol + pure water/Propylene glycol + pure water

Stainless:

  • All kinds of coolants are available( Pure water, Industrial water, City water and Antifreeze)

How to Customize Liquid Cooling Solutions?

Before Customize Liquid Cold Plate , please give us the layout, power density, and performance requirements of your application, our team will provides technical supports about designing and testing to production etc. After you agree our propols, Please leave it to us to design, prototype, and verify your liquid cold plates.

First Considerations is Heat Sources & Coolant:

Power density & uniformity of the heat source

Coolant flow rate, inlet pressure, and allowable pressure drop

Next Considerations is Required Parameters:

Compatibility Parameters: corrosion resistance, electrical isolation, temperature ranges, and connection standards

Then Considerations is Manufacturing & Welding methods:

Manufacturing methods: CNC machining, Injection Moulding , Stamping , Cold Forging, Die Casting

Welding methods: FSW, TLP or VB brazing

Last Considerations is Surface Finish & Treatment:

Surface Finish & Treatment: Anodizing, Ni(Nickel) plating, or special coatings

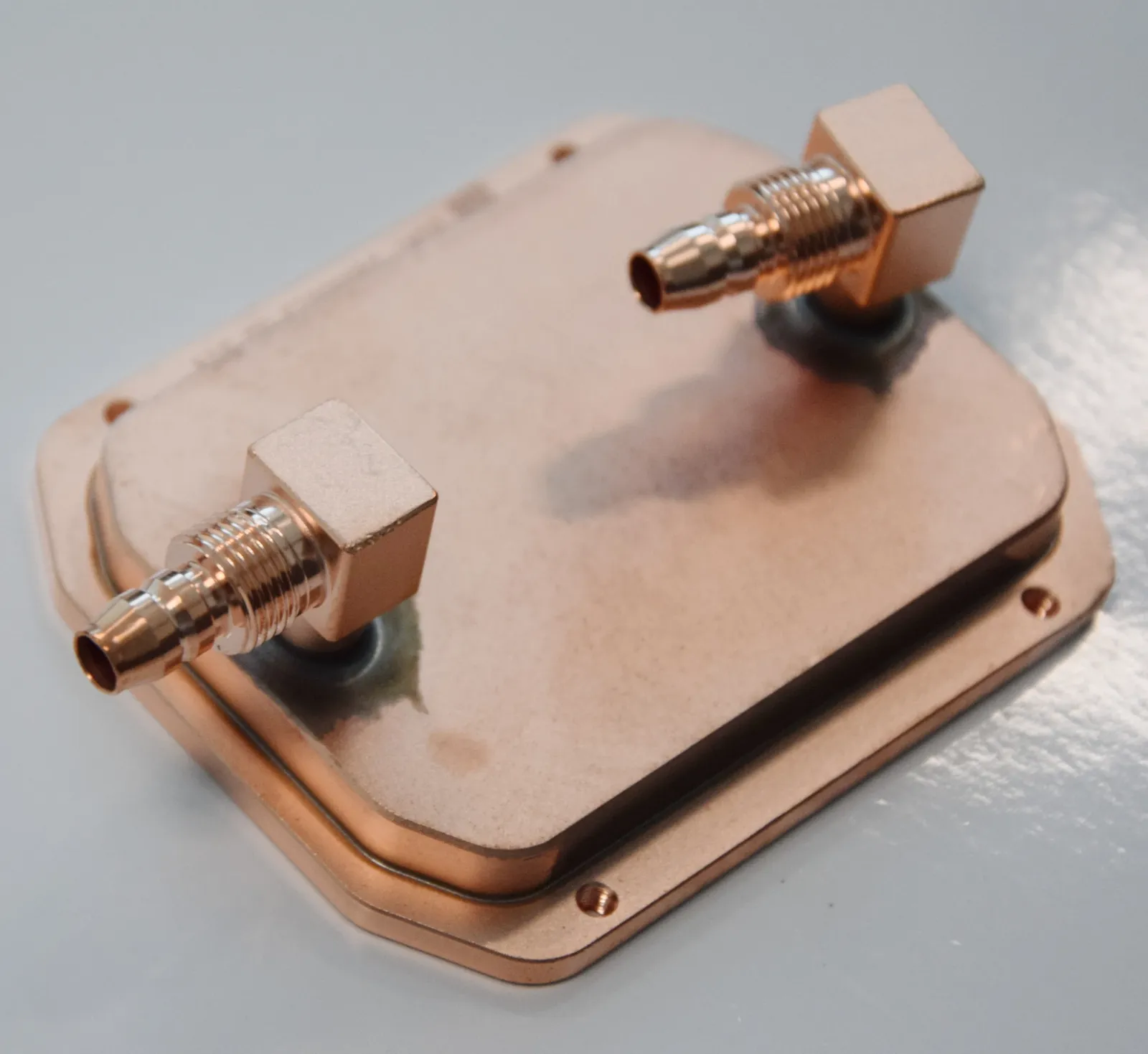

DSC_0173
